ALUMINIUM
■ Y Group · Aluminium Range · Combi

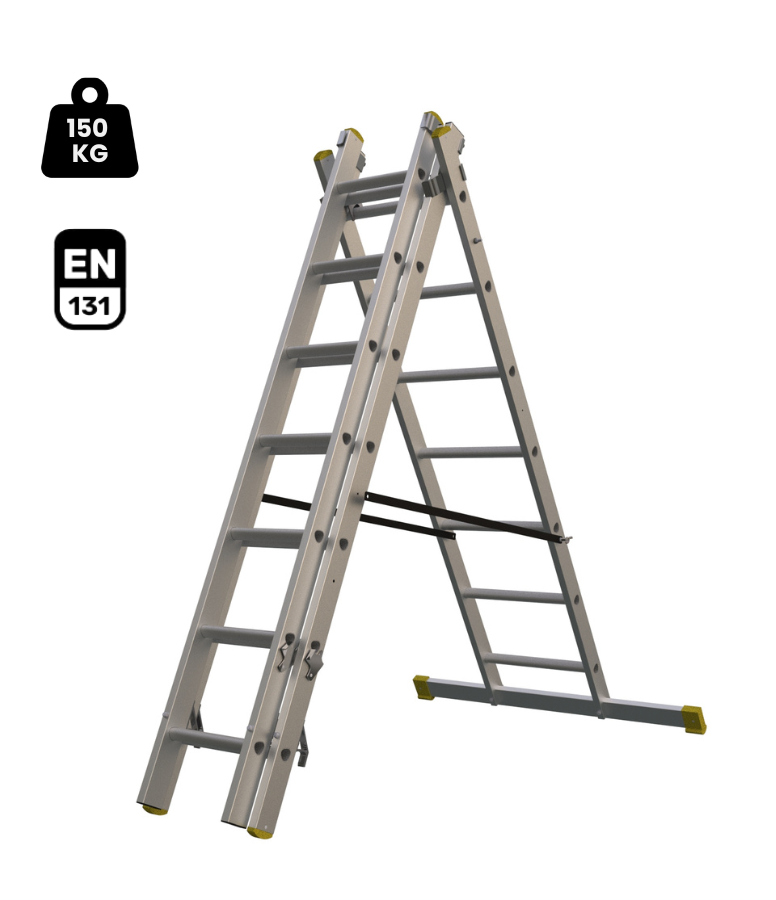

ALUMINIUM COMBI
CONVERTIBLE LADDER
Item 8112
2.5 M
Max Working Reach
3570 mm
Leaflet-published reach·≈ 11.7 ft·3-way convertible aluminium
info
3-Way Convertible·Multi-Mode
Convert between A-frame, straight and stair modes · one ladder, three jobs
150 kg Load
17.2 kg
EN 131
Select Size · 4 sizes · leaflet-certified reach
✓ APPROVED FOR
constructionConstruction & fitout
home_workFacility maintenance
apartmentResidential work (stairs + leaning)
paintPainting & signage
✗ DO NOT USE FOR
closeLive electrical (use FRP)
closeElectrical work (use FRP)
Anatomy
Every part, labelled.
Five component groups, each engineered for its role. Integrated tool tray at the top, slip-resistance steps with deep-tread profiling, 7-layer FRP C-section rails, updated internal spreaders, and anti-skid rubber shoes at the base.
Built for Industrial Load
Certified for the heaviest industrial operations.
Reach across the range
All 10 sizes, one view.
Every leaflet-certified size drawn to the same mm scale, with an 1800 mm user for human anchoring and dashed reference lines at standard residential (2400 mm), office (3000 mm) and commercial (4000 mm) ceilings.
Residential
Office
Commercial
Interactive · Reach Calculator
What height do you need to reach? We pick your ladder.
Full Size Chart
All 10 sizes · dimensions & reach per leaflet
expand_more
Full Size Chart
All 10 sizes · dimensions & reach per leaflet
| Size | Item | Closed Height | Max Standing | L × B Base | Max Reach | Weight |
|---|---|---|---|---|---|---|
| 2-Step | 8301 | 542 mm | 300 mm | 640 × 400 mm | 1800 mm · 5.9 ft | 3.7 kg |
| 3-Step | 8310 | 842 mm | 300 mm | 665 × 445 mm | 1800 mm · 5.9 ft | 4.9 kg |
| 4-Step | 8302 | 1142 mm | 550 mm | 840 × 470 mm | 2100 mm · 6.9 ft | 6.1 kg |
| 5-Step | 8303 | 1440 mm | 820 mm | 940 × 500 mm | 2400 mm · 7.9 ft | 7.5 kg |
| 6-Step | 8304 | 1826 mm | 1100 mm | 1190 × 645 mm | 2700 mm · 8.9 ft | 8.85 kg |
| 7-Step | 8305 | 2148 mm | 1400 mm | 1430 × 575 mm | 2950 mm · 9.7 ft | 10.0 kg |
| 8-Step | 8306 | 2426 mm | 1660 mm | 1595 × 625 mm | 3200 mm · 10.5 ft | 11.3 kg |
| 10-Step | 8307 | 3008 mm | 2210 mm | 1935 × 690 mm | 3460 mm · 11.4 ft | 14.2 kg |
| 12-Step | 8308 | 3600 mm | 2780 mm | 2200 × 765 mm | 4330 mm · 14.2 ft | 17.0 kg |
| 14-Step | 8309 | 4200 mm | 3370 mm | 2570 × 840 mm | 4920 mm · 16.1 ft | 20.0 kg |
Values from Y Group ‘A’ Type Single Side FRP leaflet (authoritative manufacturer spec sheet).
2700 mm
1800 mm · 5.9 ft
4920 mm · 16.1 ft
Reach values are taken directly from the Y Group ‘A’ Type Single Side FRP leaflet, manufacturer-published, not synthetic estimates.
Recommended Size
6-Step
Item 8304
Reach
2700 mm
8.9 ft
Max Standing
1100 mm
Closed (transport)
1826 mm
Base (L × B)
1190 × 645 mm
Weight
8.85 kg
inventory_2
One-person carry
Request Quote arrow_forward
Interactive · Material Decision
FRP or Aluminium? 3 questions decide.
Question 1 / 3
Will you work near live electricity?
Panels, substations, transformers, overhead lines, any energised equipment above 50 V AC.
Safe climbing technique
Always 3 points of contact. Here's how.
CORRECT · 3-POINT CONTACT
One hand + two feet
Always keep three points of contact, one hand on a rail OR rung, both feet planted on a step. Move one limb at a time. Never two hands + one foot; never two feet + no hands.
WRONG · 2-POINT ONLY
Both hands on tools
Carrying tools in both hands breaks 3-point contact, if you slip, no hand is free to grab the rail. A common cause of fall incidents. Never climb with tools in both hands.
BETTER · TOOL TRAY
Use the integrated tray
Y Group's integrated tool tray keeps tools within reach while you keep one hand on a rail. Reach into the tray = still 3-point contact. This is why every FRP Single Side ships with one standard.
Ready to Specify
Every FRP Single Side ships ERDA-certified.
Non-conductive 7-layer fibreglass rails · EN 131 certified · 150 kg rated across all 10 sizes · ERDA-tested per IEC 60060-1:2010. Lead time 7-14 days from 24 Y Group branches across India.
