LIFTO
INDUSTRIAL MANUAL MATERIAL LIFT

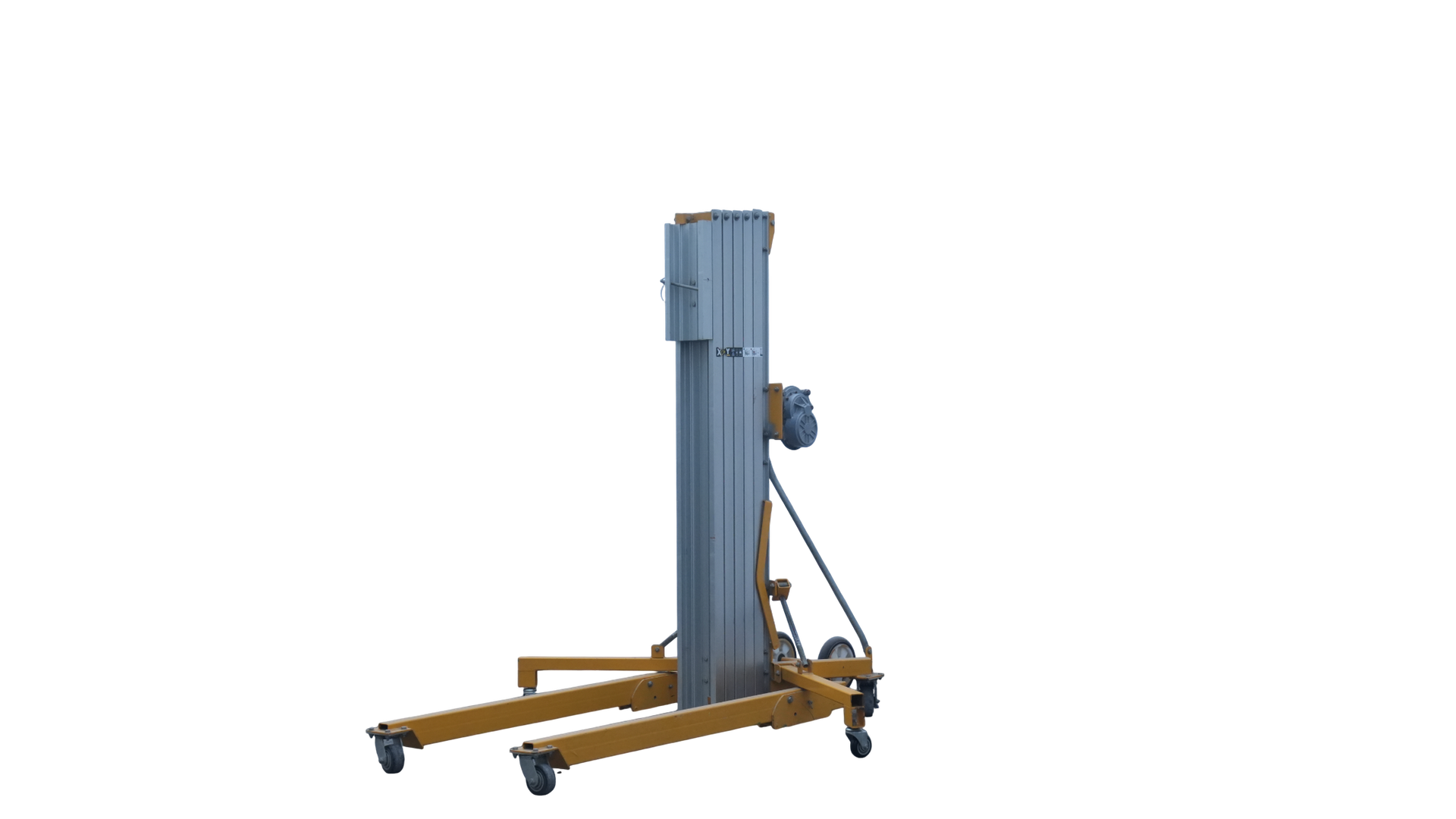

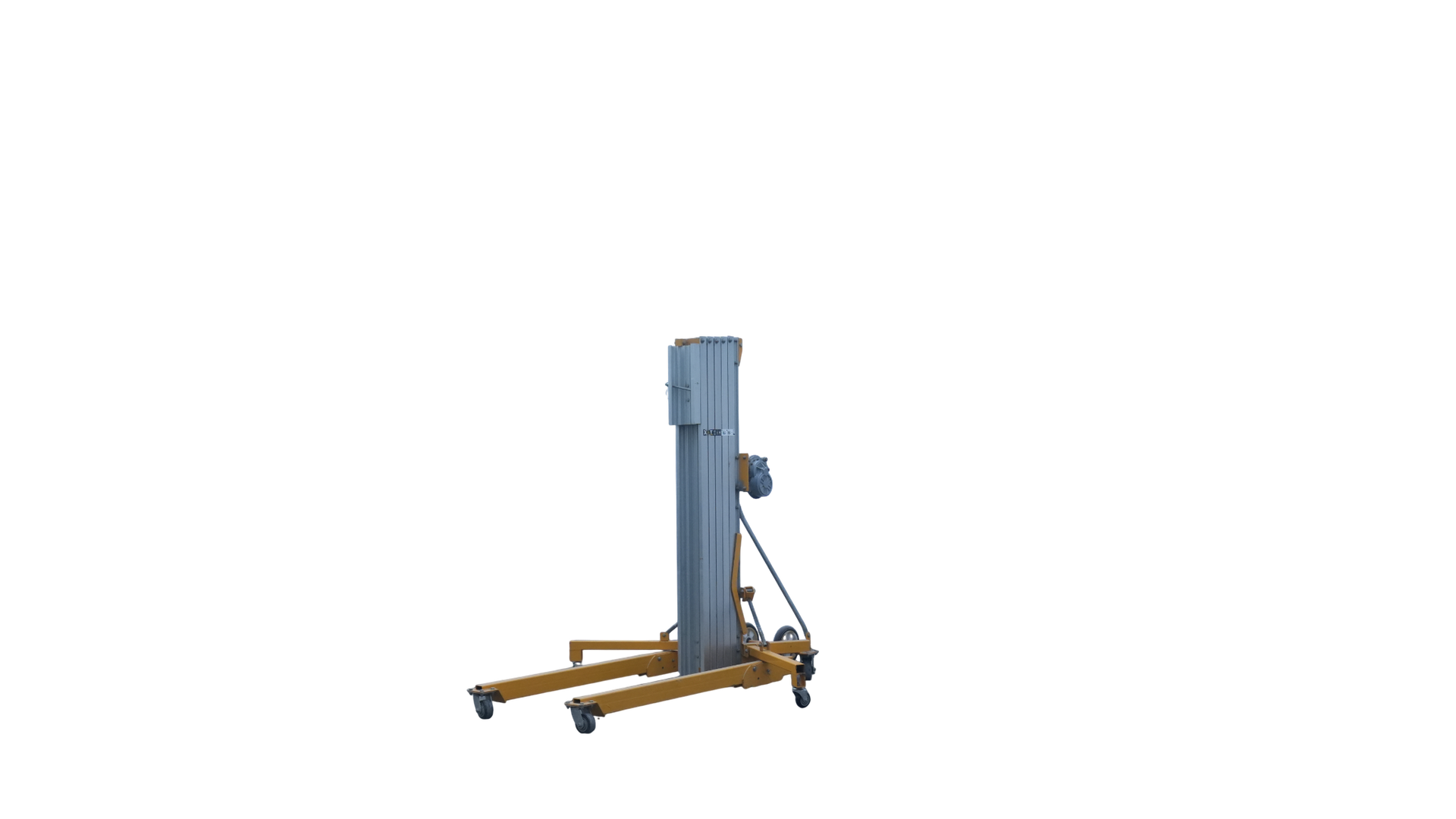

The Lifto is an industrial material lift with interchangeable attachments (forks, pipe cradle, boom) and 3 models lifting to 4.98m-6.46m. EN 13155 certified, 200-300kg capacity, with manual winch, roller wheels, and non-conductive FRP side rails.
SAFE MATERIAL
HANDLING
The LIFTO series is the industry's safest manual material lift, designed for working around electricity with non-conductive side rails. Interchangeable load handling attachments standard forks, pipe cradle, adjustable forks, and boom make it the most versatile lifting solution.

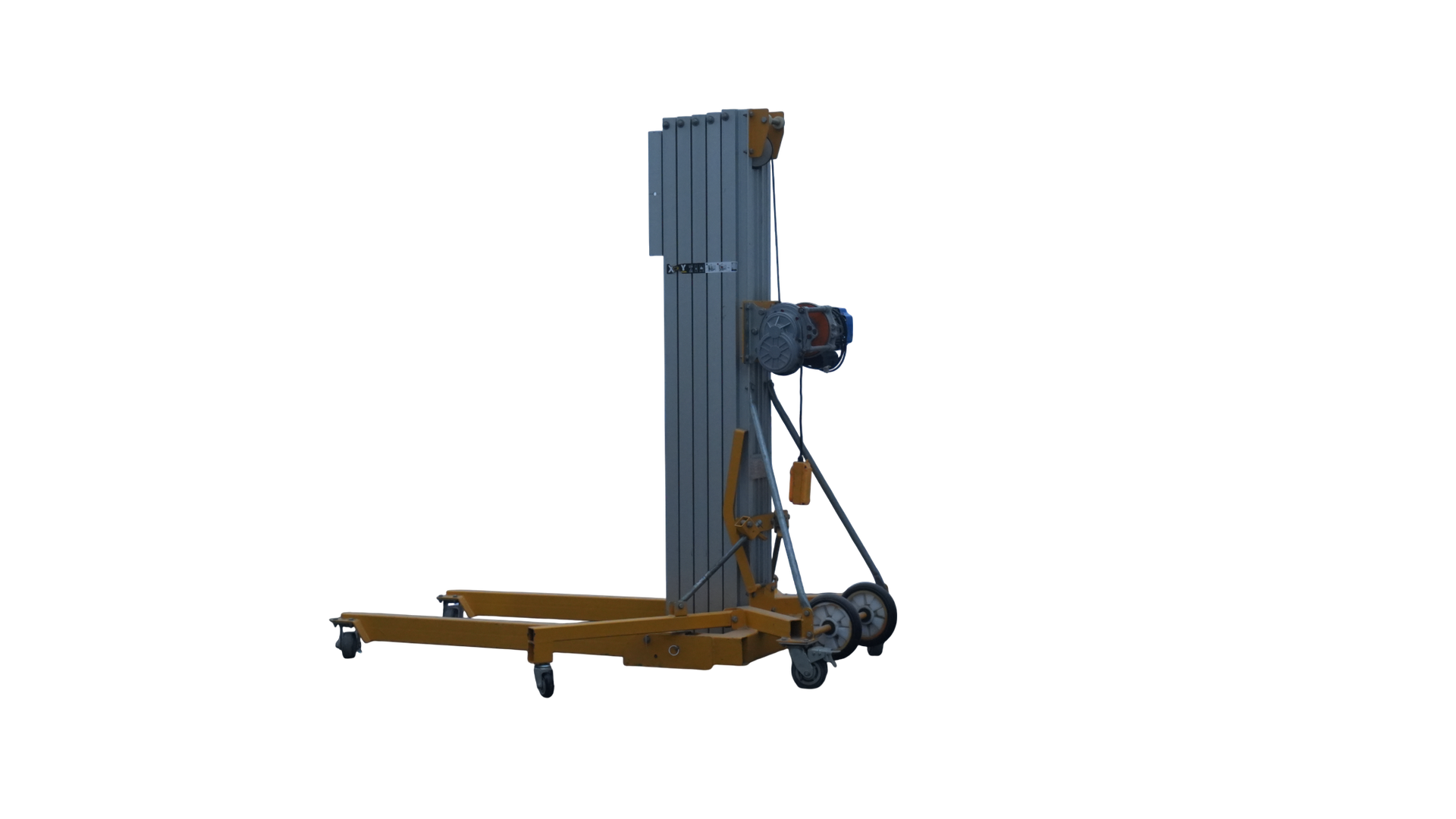

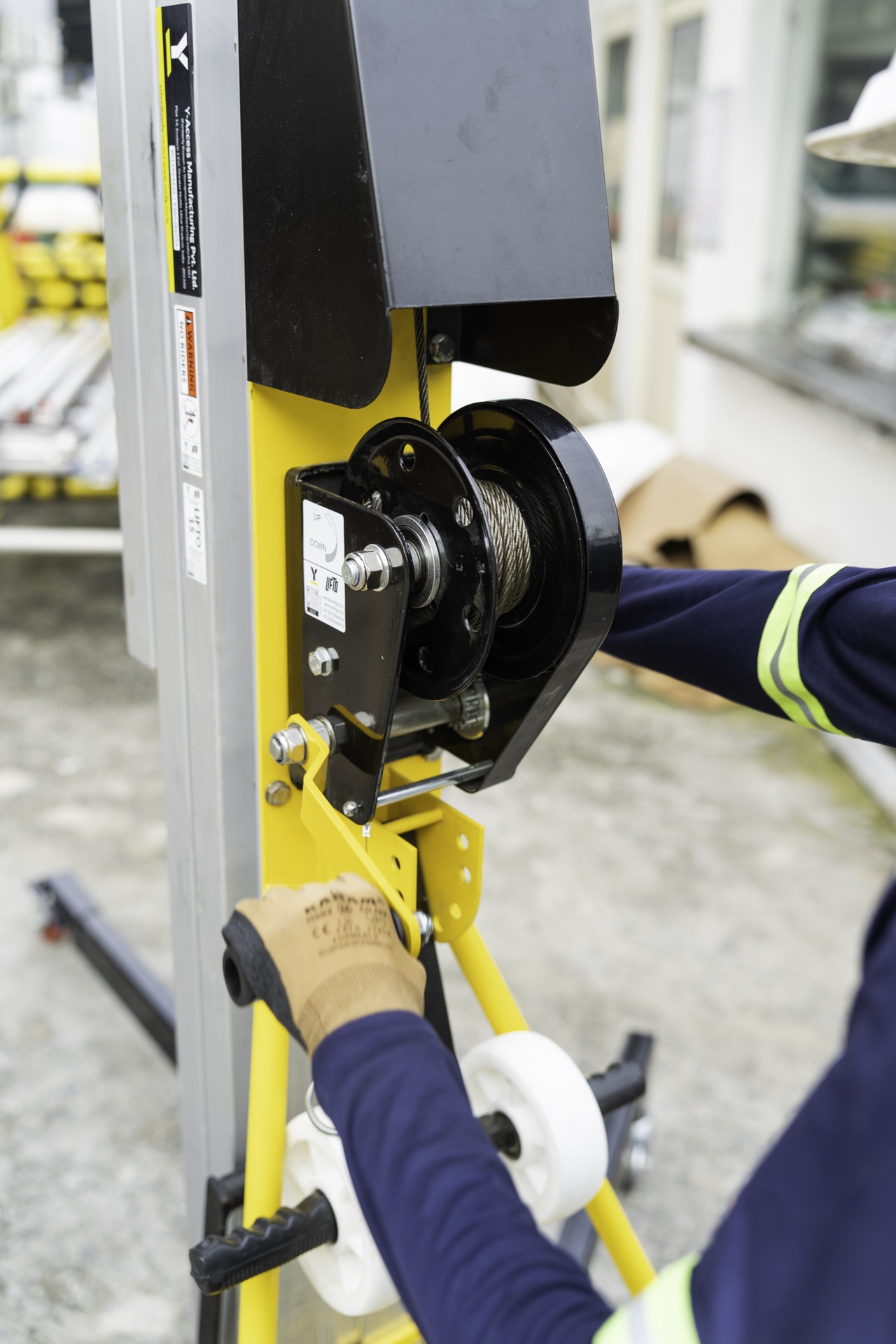

Roller wheels enable easy transport in stowed position. The compact design with fold-up legs ensures easy storage. Power one-speed manual winch with inside-mast cable feed provides smooth, controlled lifting. Reversible forks, lockable 5" casters, and 10" rough terrain wheels for any surface.
HVAC & Fire Industry
Lifting AC units, ductwork, fire suppression systems, and heavy equipment to ceiling height safely.
Event & General Contracting
Stage lighting, truss rigging, and overhead equipment installation in event venues and general construction.
Technical Specifications
description Download Full PDF Specs| Parameters | LIFTO-15 | LIFTO-20 | LIFTO-25 |
|---|---|---|---|
| Maximum Lifting Height | 4.98m | 6.46m | 7.94m |
| Load Capacity | 300kg | 250kg | 200kg |
| Load Center 40cm | 300kg | 250kg | 200kg |
| Load Center 80cm | 250kg | 200kg | 150kg |
| Load Center 100cm | 150kg | 100kg | 75kg |
Interchangeable Attachments

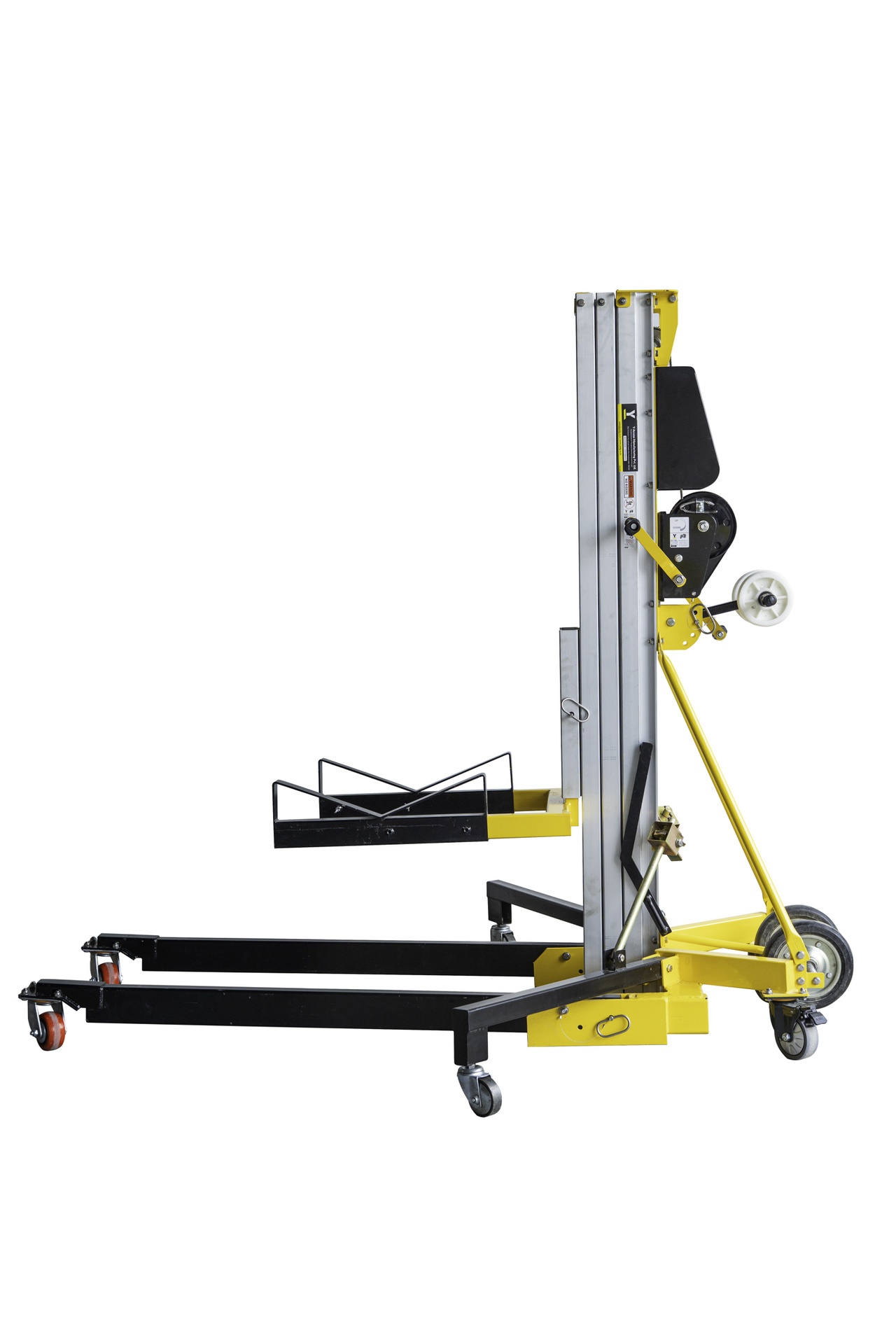

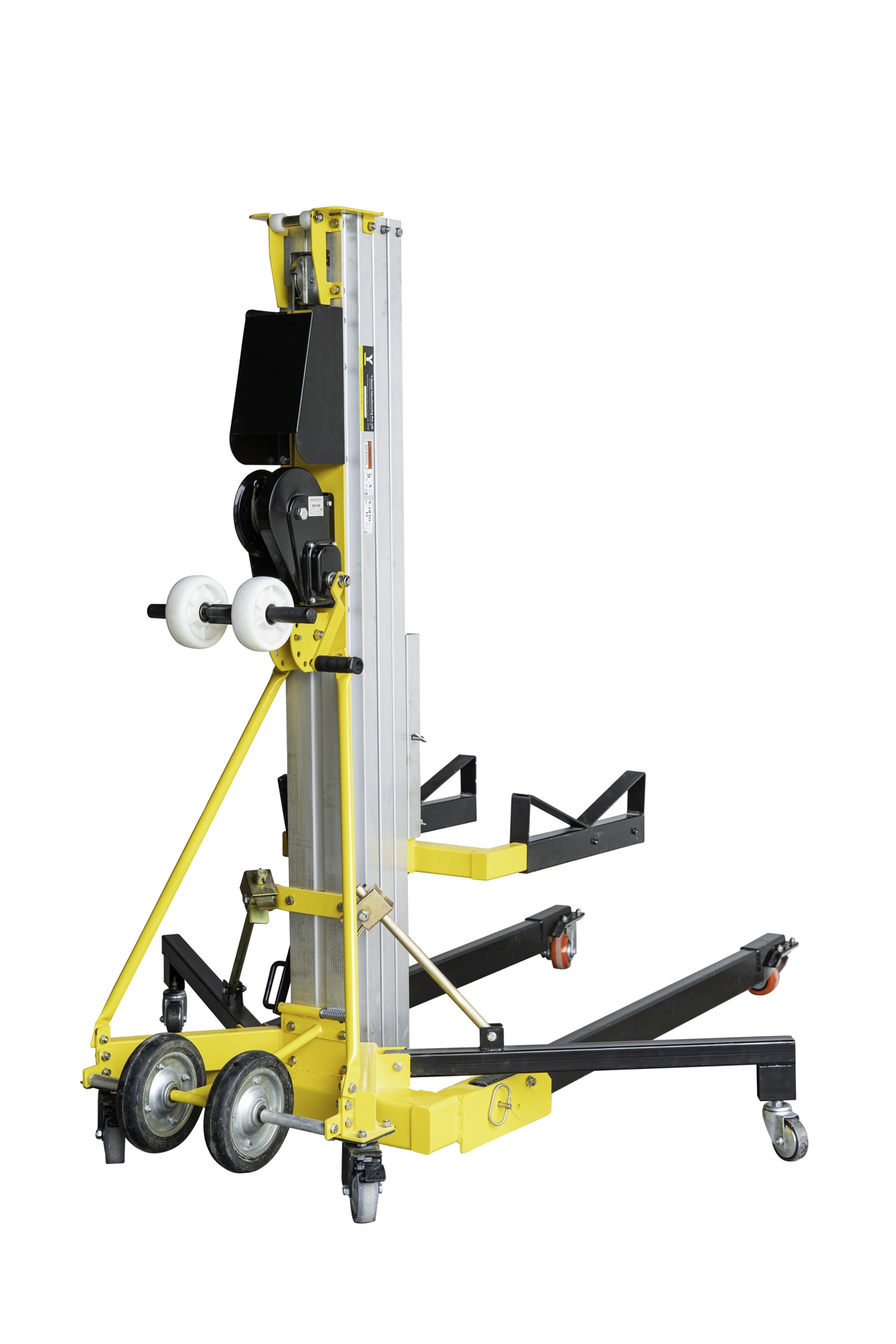

Standard forks, pipe cradle, adjustable forks, and boom swap attachments for any material type.
Non-Conductive Rails
FRP side rails make LIFTO safe for use around live electrical equipment and installations.
Compact Storage
Legs fold up for compact storage. Easy to load onto vehicles for transport between sites.
All-Terrain Wheels
10-inch rough terrain wheels plus 5-inch lockable casters for any floor surface.
Resource Center
Deployment Excellence
LIFTO-15 deployed at Amazon fulfilment centres for overhead conveyor maintenance and HVAC unit installation.
Used by fire industry contractors for sprinkler system installation in warehouse and commercial buildings.
