XO FRP
SCAFFOLDING

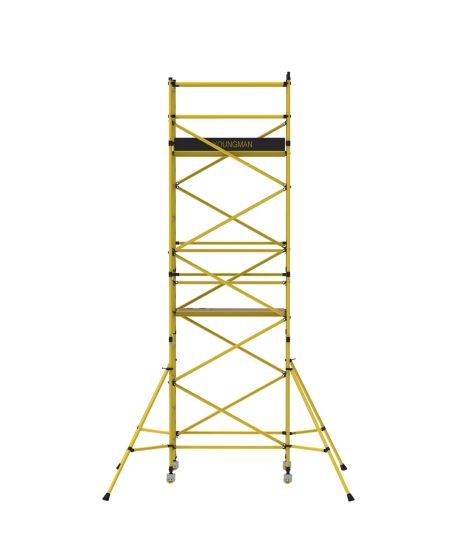

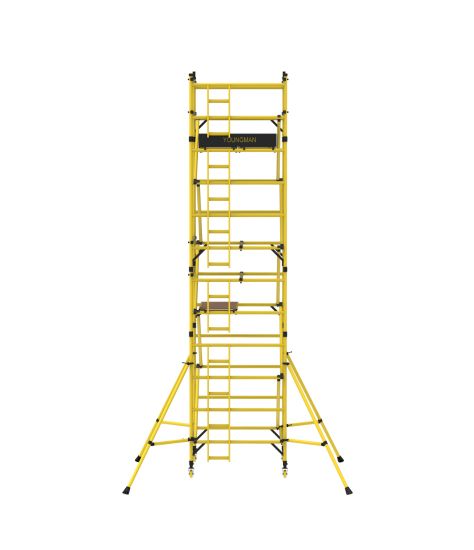

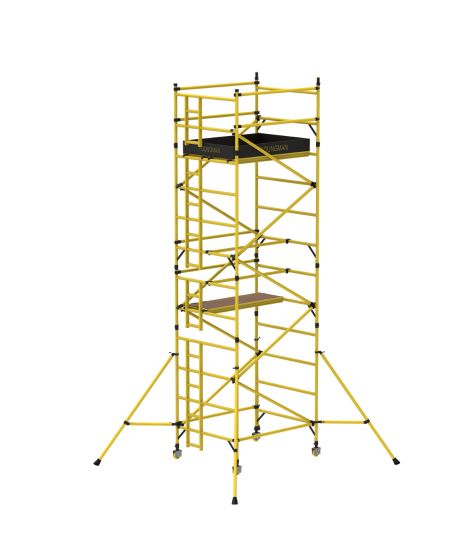

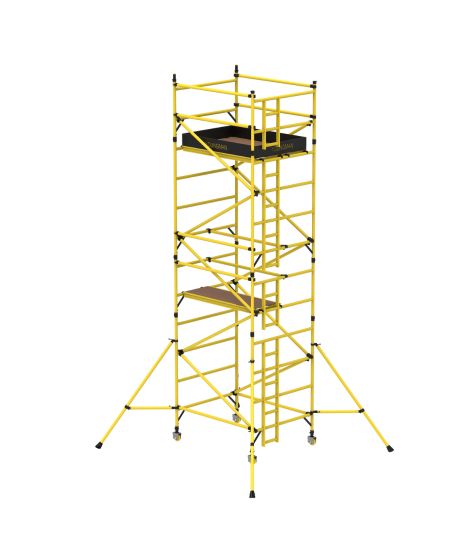

Electric shock-proof fiberglass access tower, the industrial FRP standard, based on the proven XO aluminium design. Non-conductive, non-sparking, non-corrosive. Authorized for Zone 1 hazardous sites.
Industrial FRP, Zone 1 authorized.
Shock-Proof FRP
Non-conductive fibreglass components throughout, safe around live electrical hazards, transformers, overhead lines.
Non-Corrosive
Resistant to chemicals and moisture, use in close proximity to acids, caustics, salt spray where aluminum would corrode.
Rail Trolley Compatible
Mount on a rail trolley for electrical applications on railway lines and metro rails, purpose-built for rail infrastructure work.
Zone 1 Authorized
Approved for use in essential Zone 1 hazardous sites, where non-sparking, non-conductive equipment is mandatory.
Every component, engineered for electrical safety.
Shock-Proof FRP Construction
Every structural component non-conductive fibreglass, frames, rails, braces, platform surfaces. Zero conductivity path anywhere in the tower.
Non-Corrosive Design
Resistant to acids, caustics, salt spray. Doesn't get hot or cold like metal, easier handling in every climate.
Rail Trolley Mountable
Purpose-designed to mount on a rail trolley for railway and metro track electrical work. No other scaffold system supports this.
SW + DW Frames
Single-width (0.85m) and double-width (1.45m) FRP frames, configure any footprint. Ladder frame and span frame options.
Complete technical tower data.
Complete Parts List
Complete parts list for the XO FRP non-conductive fibreglass tower system. Electrical shock-proof, Zone 1 authorized, SW and DW configurations, 1.9 m / 2.5 m deck lengths.
| Item Code | Component Name | Length | Weight |
|---|---|---|---|
| 1450 Double Width Span Frame (500 mm Rung Pitch) | |||
| 7648 | XO FRP 2R DW Frame | 1.00 m | 6.1 kg |
| 7650 | XO FRP 3R DW Frame | 1.50 m | 9.7 kg |
| 7652 | XO FRP 4R DW Frame | 2.00 m | 14.25 kg |
| 850 Single Width Span Frame (500 mm Rung Pitch) | |||
| 7642 | XO FRP 2R SW Frame | 1.00 m | 4.3 kg |
| 7644 | XO FRP 3R SW Frame | 1.50 m | 8.2 kg |
| 7646 | XO FRP 4R SW Frame | 2.00 m | 12.5 kg |
| 1450 Double Width Ladder Frame (500 mm Rung Pitch) | |||
| 7647 | XO FRP 2R DW Ladder | 1.00 m | 9.0 kg |
| 7649 | XO FRP 3R DW Ladder | 1.50 m | 12.35 kg |
| 7651 | XO FRP 4R DW Ladder | 2.00 m | 17.7 kg |
| 850 Single Width Ladder Frame (500 mm Rung Pitch) | |||
| 7641 | XO FRP 2R SW Ladder | 1.00 m | 7.1 kg |
| 7643 | XO FRP 3R SW Ladder | 1.50 m | 9.0 kg |
| 7645 | XO FRP 4R SW Ladder | 2.00 m | 13.8 kg |
| Tower Base | |||
| 9152 | XO FRP Adjustable Leg | 0.60 m | 1.2 kg |
| 9711 | XO 150 mm Castor (Non Tyred) | 0.19 m | 3.55 kg |
| 3341 | XO 200 mm Castor (Tyred) | 0.24 m | 4.3 kg |
| Stabiliser | |||
| 7631 | XO FRP Small Stabiliser | 2.00 m | 4.65 kg |
| 7632 | XO FRP Big Stabiliser | 2.1–3 m | 7.2 kg |
| Tower Brace | |||
| 7613 | XO FRP 1.9 Horizontal Bracing | 1.9 m | 1.99 kg |
| 7617 | Z1 2.5 Horizontal Bracing | 2.5 m | 2.6 kg |
| 7614 | XO FRP 2.1 Diagonal Bracing | 2.1 m | 2.2 kg |
| 7618 | Z1 2.7 Diagonal Bracing | 2.7 m | 3.1 kg |
| Toeboard | |||
| 9405 | XO Z1 1.9 SW Toeboard | 1.9 m | 8.9 kg |
| 9407 | XO Z1 2.5 SW Toeboard | 2.5 m | 13.0 kg |
| 9406 | XO 1.9 DW Toeboard | 1.9 m | 9.4 kg |
| 9408 | XO Z1 2.5 DW Toeboard | 2.5 m | 12.5 kg |
| Platform | |||
| 7612 | XO FRP Fixed Deck 1.9 m | 1.9 m | 16.7 kg |
| 7616 | Z1 Fixed Deck 2.5 m | 2.5 m | 24.0 kg |
| 7611 | XO FRP Trapdoor 1.9 m | 1.9 m | 18.9 kg |
| 7615 | Z1 Trapdoor 2.5 m | 2.5 m | 21.0 kg |
Tested to international standards.
European standard for mobile access and working towers, prefabricated elements, safety, performance, assembly requirements.
Performance requirements and general design for scaffolds. All structural elements manufactured to EN 12811 tolerances.
Independent third-party verification. Every tower design validated by TÜV India under TÜV Nord Group oversight.
Eurocode 9, design of aluminium structures. Applied to all load-bearing aluminium components in Y Group towers.
Where XO FRP Tower earns its place.
Electrical hazard zones, railway/metro electrical work, chemical plants, substations, transformer work, transmission line maintenance.
Nearly a century of access equipment expertise.
Explore the Access Tower range.
Deployed on real Indian industrial sites.
Transformed HVAC and Electrical Maintenance with XO FRP
3× Productivity Boost with Corrosion-Resistant Access
Safe Duct Maintenance Above Molten Aluminium with Cantilever
Equip your team with access towers built for the hardest work.
Talk to a specialist about the right SKU for your site, quantity pricing, and delivery timelines. Standard lead time: 7-14 days. Serviced from 24 branches across India.
