FITOUT
MASTER

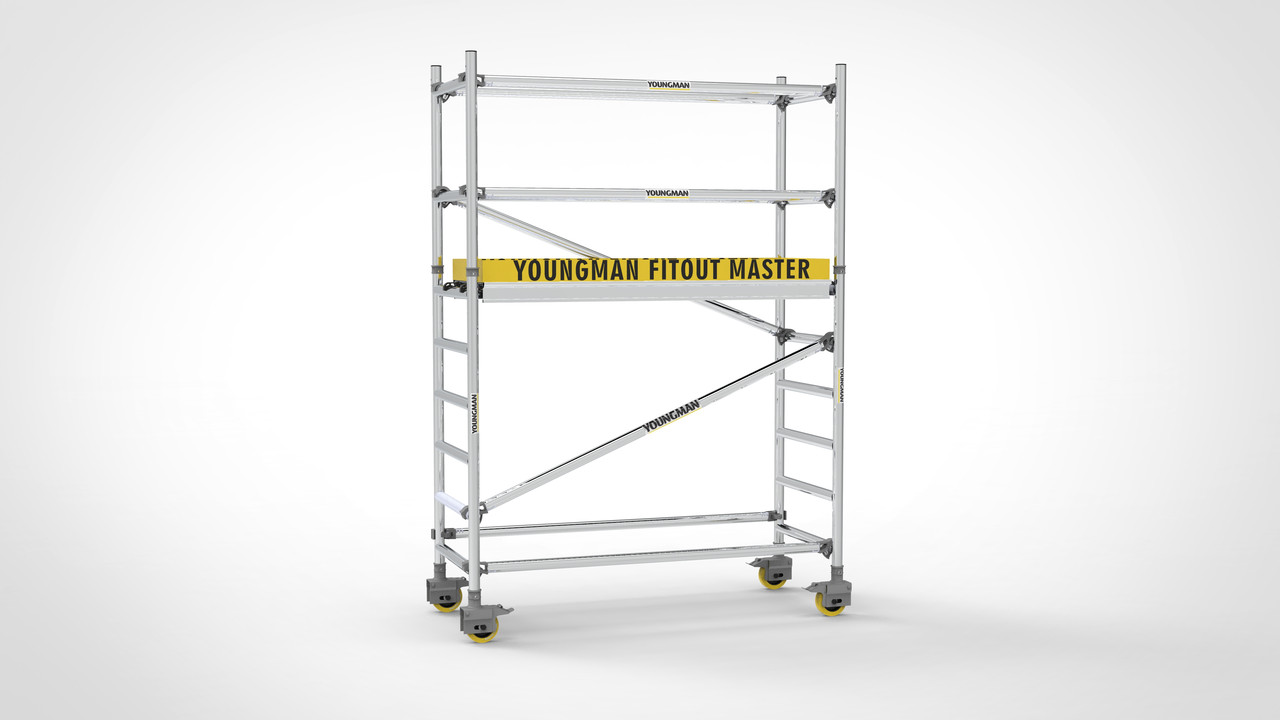

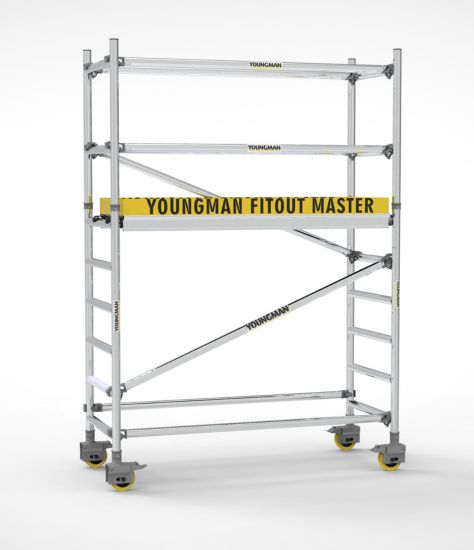

Lightweight mobile access tower for interior design and maintenance, fits through standard doorways, adjustable platform in 0.26 m increments from 1.7 m up, safe working height to 8 m. EN 1004 tower compliance with EN 12811 material standard.
Goes where other towers can't.
Through Standard Doors
700mm-wide frame fits through standard 800mm doorways, take the tower into any room, any corridor.
Modular Assembly
Snap-lock bracing, one person can assemble a working tower in minutes. No special tools required.
0.26 m Adjustment
Platform height adjustable in 0.26 metre increments from a 1.7 m minimum, set to the exact working height for every job.
220 kg Platform Load
Full maintenance crew + materials on the platform. Rated for sustained working load, not just minimum spec.

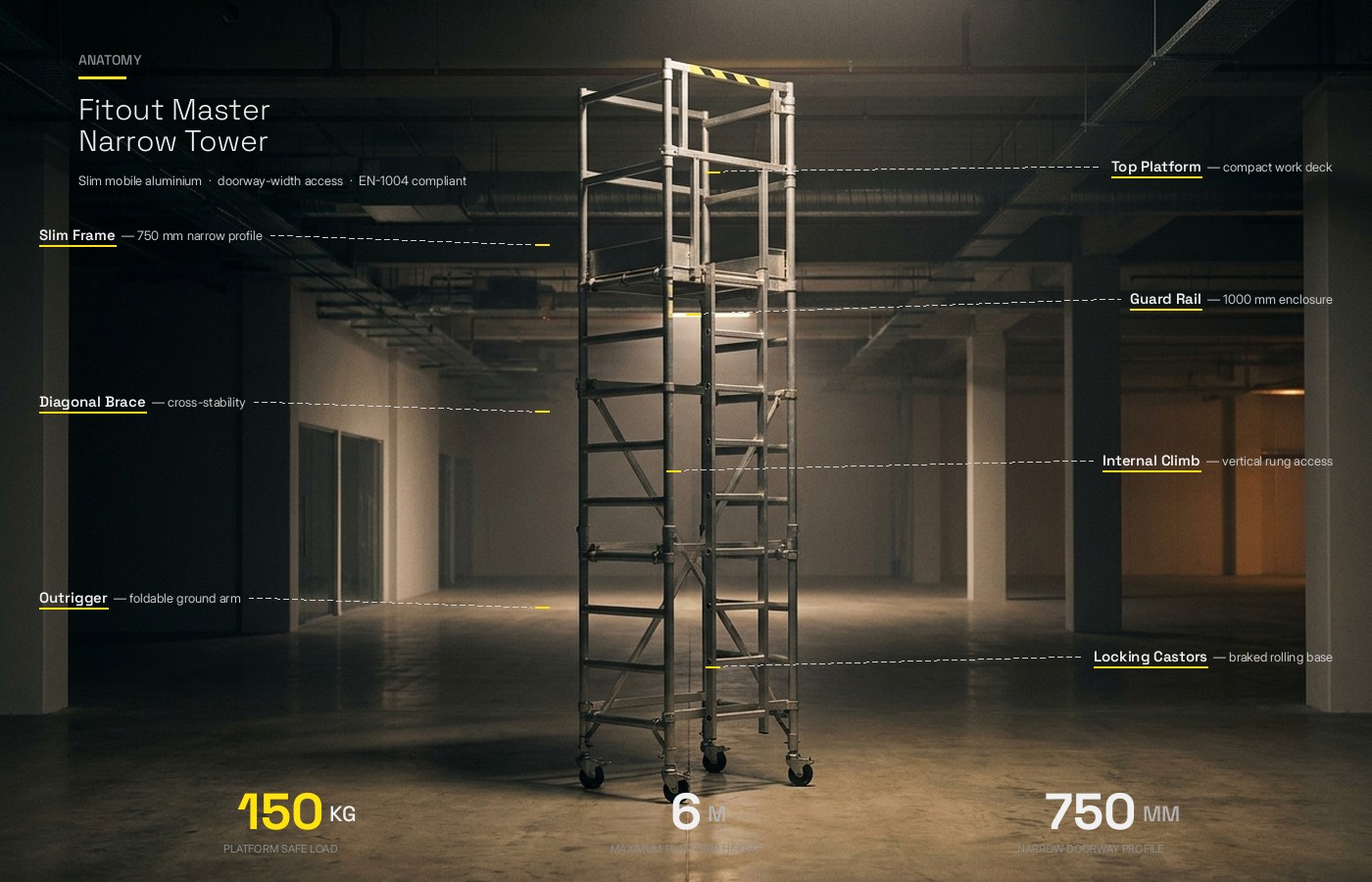

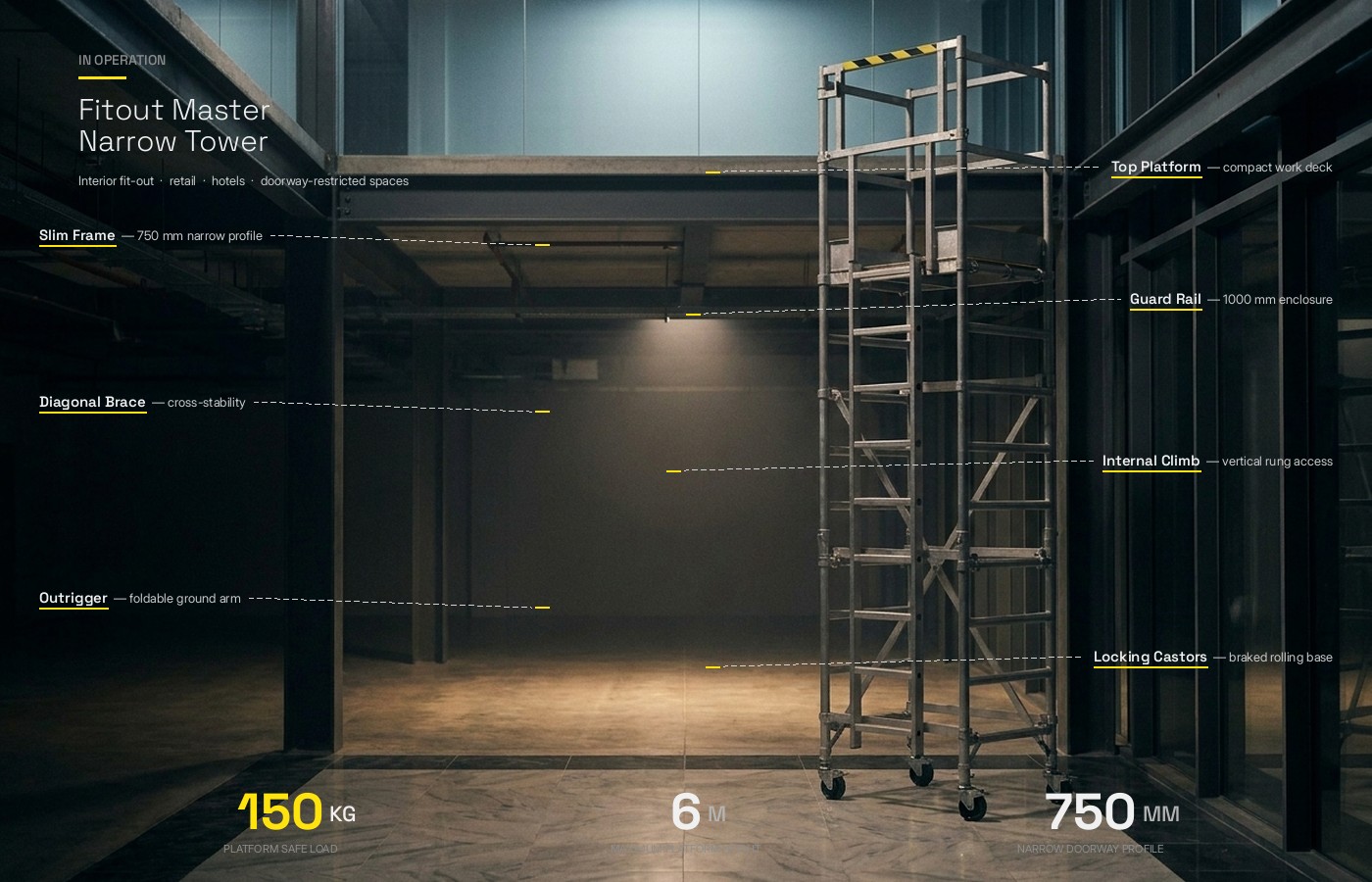

Every component, engineered for portability.
Door-Accessible Frame
1.83×0.7m footprint fits through standard 800mm doorways and standard hallways. Take it into any commercial or residential interior.
Snap-Lock Bracing
Fast-mount diagonal bracing with positive snap-locks, assemble or dismantle a working tower in minutes.
1.83m Trapdoor Deck
Full-width trapdoor platform for vertical access through the tower. 1.83m long for a proper standing work surface.
EN 1004 + EN 12811
Tower assembled to EN 1004, materials to EN 12811. TÜV India certified. Complies with international scaffold tower standards.
Complete technical tower data.
Complete Parts List
All 12 components with exact item codes, lengths, and weights from the product catalogue. Every part traceable.
| Item Code | Component Name | Length | Weight |
|---|---|---|---|
| 700 Span Frame (260 mm Rung Pitch) | |||
| 7307 | Fitout Master 6 Rung Frame with Spigot | 1.56 m | 9.7 kg |
| 7309 | Fitout Master 7 Rung Frame with Spigot | 1.82 m | 11.1 kg |
| 7311 | Fitout Master 8 Rung Frame with Spigot | 2.08 m | 13.54 kg |
| Guard-Rail Frames | |||
| 7305 | Guard-Rail Frame 3R | 0.78 m | 4.85 kg |
| 7304 | Guard-Rail Frame 2R | 0.94 m | 4.35 kg |
| 7299 | Guard-Rail Frame 1R | 0.17 m | 2.1 kg |
| Tower Base | |||
| 9710 | Fitout Castor 125 mm (Non Tyred) | 0.19 m | 2.2 kg |
| Tower Brace | |||
| 7302 | Fitout Master Bracing Horizontal | 1.83 m | 1.95 kg |
| 7303 | Fitout Master Bracing Diagonal | 1.98 m | 2.05 kg |
| Stabiliser | |||
| 7401 | XO SP7, Universal Clamp | 2.29 m | 4.2 kg |
| Toeboard | |||
| 9409 | Fitout Toeboard | 1.83 m | 8.6 kg |
| Platform | |||
| 7301 | Fitout Master Trapdoor Deck | 1.83 m | 3.75 kg |
Tested to international standards.
European standard for mobile access and working towers, prefabricated elements, safety, performance, assembly requirements.
Performance requirements and general design for scaffolds. All structural elements manufactured to EN 12811 tolerances.
Independent third-party verification. Every tower design validated by TÜV India under TÜV Nord Group oversight.
Eurocode 9, design of aluminium structures. Applied to all load-bearing aluminium components in Y Group towers.
Where Fitout Master earns its place.
Interior fit-out work, commercial maintenance, retail build-out, residential trades, anywhere you need height access through standard doorways.
Nearly a century of access equipment expertise.
Deployed on real Indian industrial sites.
3× Productivity Improvement with Fitout Master
3× Productivity and Safety Boost in Automated Manufacturing
3× Productivity and 93% Weight Reduction
Equip your team with access towers built for the hardest work.
Talk to a specialist about the right SKU for your site, quantity pricing, and delivery timelines. Standard lead time: 7-14 days. Serviced from 24 branches across India.
